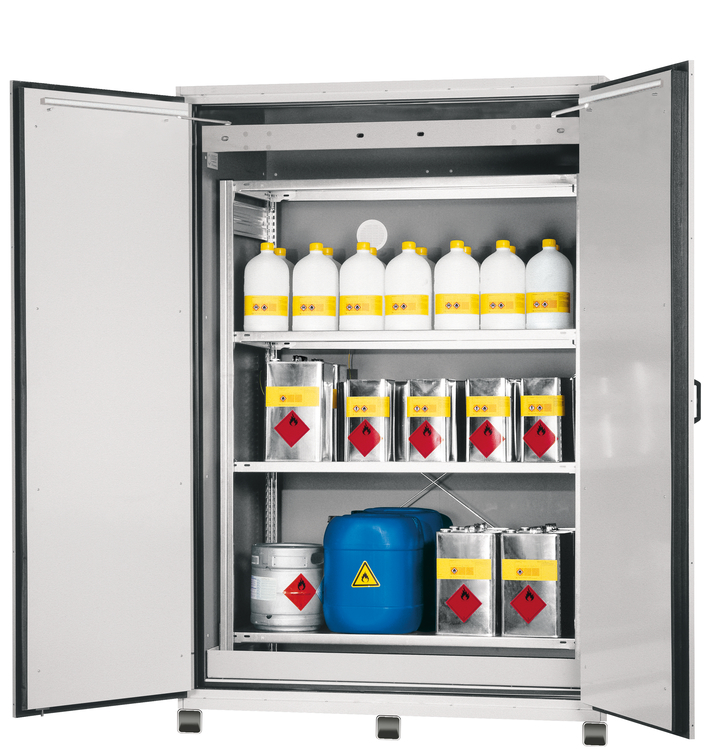

Safety storage cabinet XL-CLASSIC-90 model XL90.222.155.WDAS
Order No.:
30382-001-30384
Recommended retail price:
{{ preis.preis | currency }} - {{ preis.text }}
Configuration
Model
Colour
Interior equipment with
- Type 90 Safety storage cabinet
- Free standing unit with wing doors, door open arrest system
- With cylinder locking
- Model line XL-LINE
- Model class XL-CLASSIC-90
- Model XL90.222.155.WDAS
- Type tested in accordance with EN 14470-1
- GS certified
- CE compliant
- Dimensions exterior: W x D x H (mm) 1555 x 1018 x 2324
- Dimensions interior: W x D x H (mm) 1386 x 864 x 1890
- body colour light grey (RAL 7035)
- with wing doors in light grey (RAL 7035)
- 1 x transport base, height = 100 mm, powder-coated steel, RAL 7035 light grey
- 1 x bottom collecting sump with grid, capacity: 235 litres, sheet steel galvanised
Technical Data
| External dimensions W x D x H | 1555 x 1018 x 2324 mm |
| Internal dimensions W x D x H | 1386 x 864 x 1890 mm |
| Weight | 1.147 kg |
| Minimum exhaust air quantity 10 times | 24 m³/h |
| Differential pressure (10 times air change) | 15 Pa |
| Differential pressure (10 times air change EK5/AK4) | 15 Pa |
| Distributed load | 685 kg/m² |
| Maximum load | 1.000 kg |
| Capacity of bottom collecting sump | 235.00 litres |
| ecl@ss 5.1.4 | 21-10-04-07 |
| ecl@ss 9.1 | 40-06-90-90 |
| ecl@ss 10.0 | 40-06-90-90 |
| ecl@ss 11.0 | 40-06-01-06 |
| ecl@ss 8.1 | 40-06-01-06 |
| ecl@ss 14.0 | 40-06-01-06 |
