Safety storage under bench cabinet UB-T-90 model UB90.060.089.2T

Order No.:

30464-001-33767

New configuration
Print

Configuration

Model
  • Type 90 Safety storage under bench cabinet
  • Under bench cabinet with 2 wing doors
  • With cylinder locking and locking state indicator
  • model line UB-LINE
  • model class UB-T-90
  • Model UB90.060.089.2T
  • Type tested in accordance with EN 14470-1
  • DIN EN 16121/16122
  • GS certified
  • CE compliant

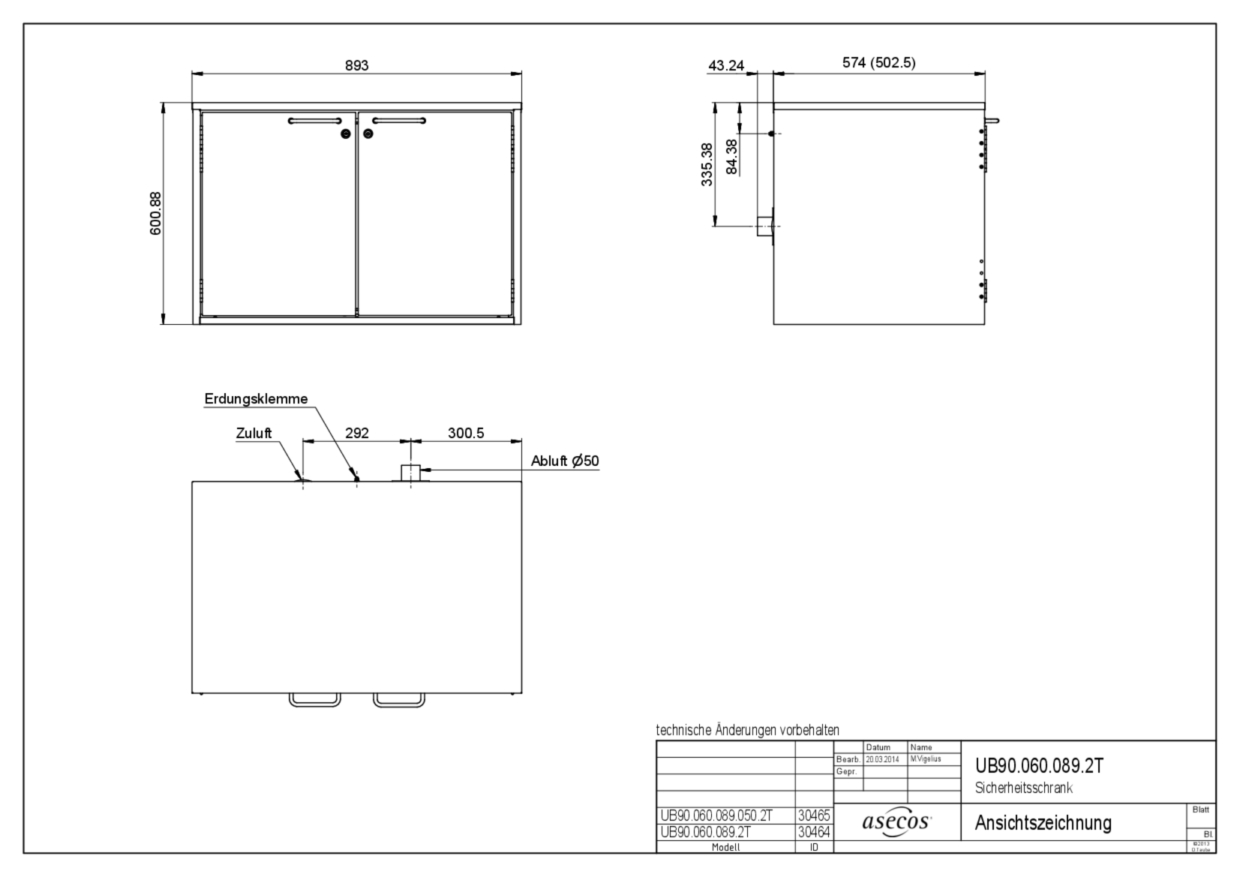

  • Dimensions exterior: W x D x H (mm) 893 x 574 x 600
  • Dimensions interior: W x D x H (mm) 771 x 452 x 502
Colour
  • body colour light grey (RAL 7035)
  • with wing doors in light grey (RAL 7035)
Interior equipment with
  • 1 x perforated insert, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
  • 1 x bottom collecting sump, capacity: 20 litres, powder-coated sheet steel, RAL 7035 light grey

Technical Data

External dimensions W x D x H 893 x 574 x 600 mm
Internal dimensions W x D x H 771 x 452 x 502 mm
Weight 161.5 kg
Minimum exhaust air quantity 10 times 2 m³/h
Differential pressure (10 times air change) 1 Pa
Differential pressure (10 times air change EK5/AK4) 1 Pa
Distributed load 313 kg/m²
Maximum load 300 kg
Max. load of perforated insert 75.00 kg
Capacity of bottom collecting sump 20.00 litres
ecl@ss 5.1.4 21-10-04-07
ecl@ss 9.1 40-06-90-90
ecl@ss 10.0 40-06-90-90
ecl@ss 11.0 40-06-01-04
ecl@ss 14.0 40-06-01-04

Downloads

Service

5service

Excellent products with special manufacturer warranty

Extended manufacturer warranty of up to 5 years in combination with an asecos service tariff

Accessories

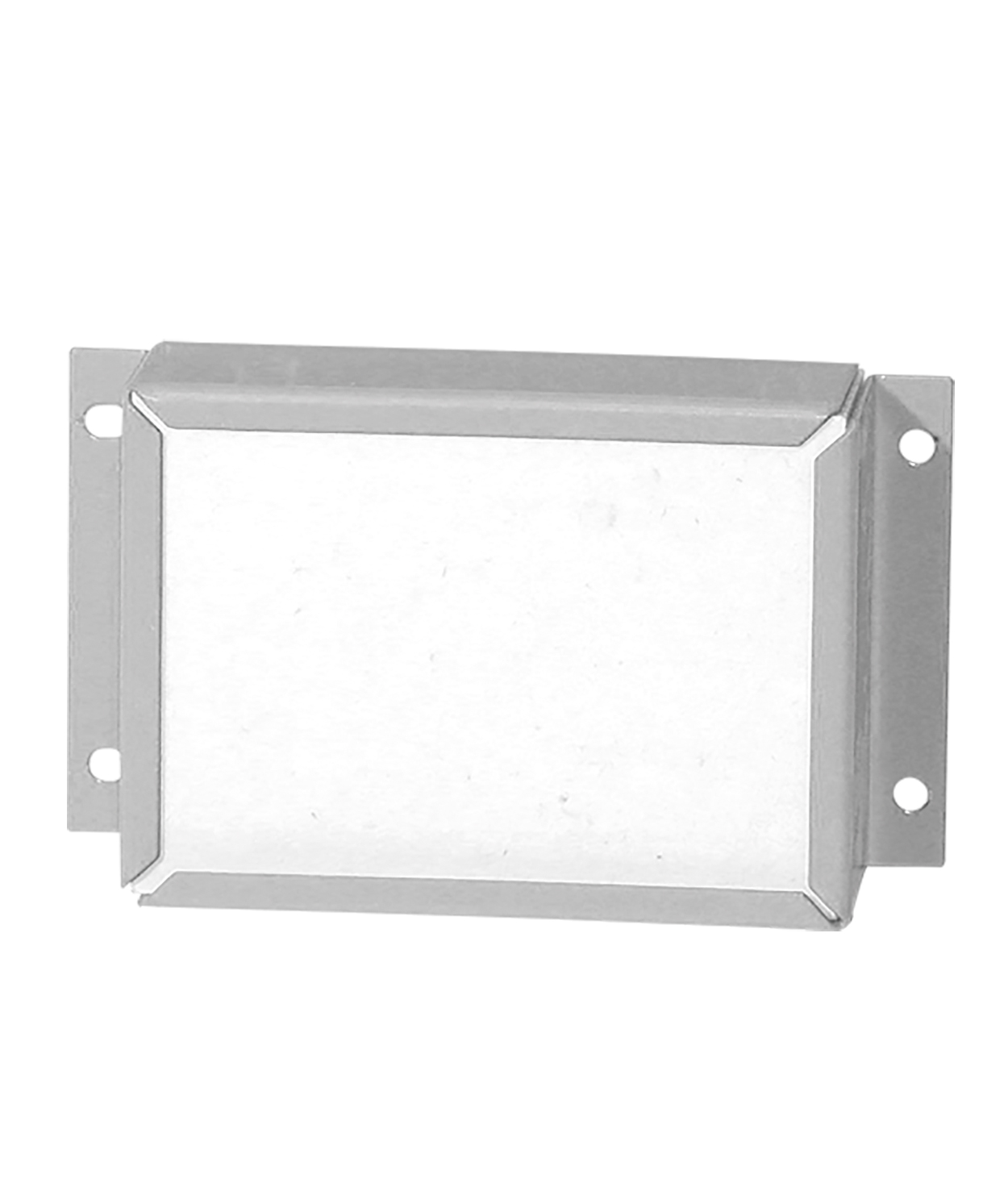

Document holder DIN A5

30793
