Gas cylinder cabinet G-ULTIMATE-90 model G90.205.140
Order No.:
30641-001-30643
Recommended retail price:
{{ preis.preis | currency }} - {{ preis.text }}
Configuration
Model
Colour
Interior equipment with
- Type G90 Gas cylinder cabinet
- Free standing unit with wing doors
- With cylinder locking (integrated in turning handle)
- Integrated adjusting aids to compensate uneven floor
- model line G-LINE
- model class G-ULTIMATE-90
- Model G90.205.140
- Type tested in accordance with EN 14470-2
- DIN EN 16121/16122
- GS certified
- CE compliant

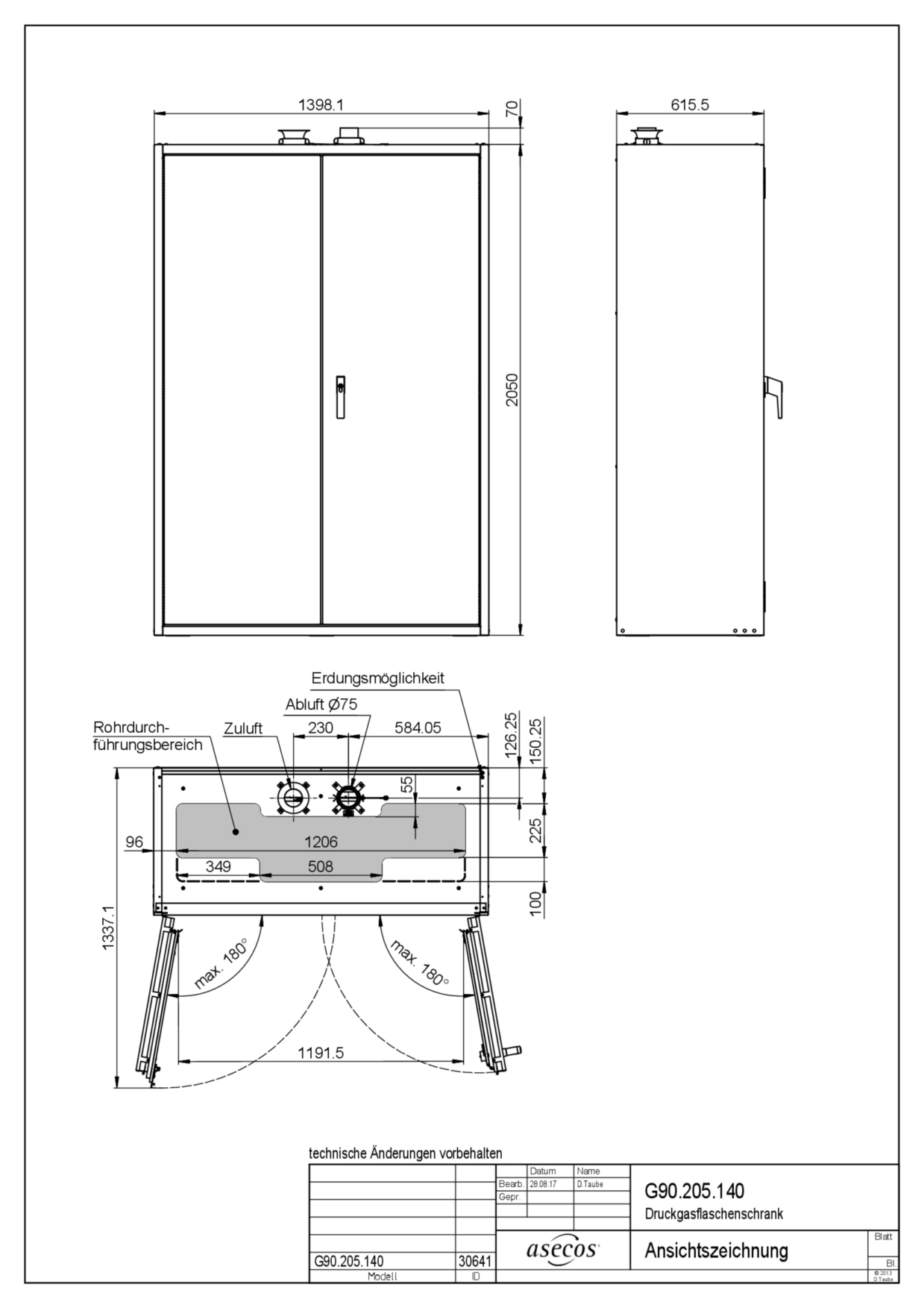

- Dimensions exterior: W x D x H (mm) 1398 x 615 x 2050
- Dimensions interior: W x D x H (mm) 1245 x 400 x 1858
- body colour light grey (RAL 7035)
- with wing doors in light grey (RAL 7035)

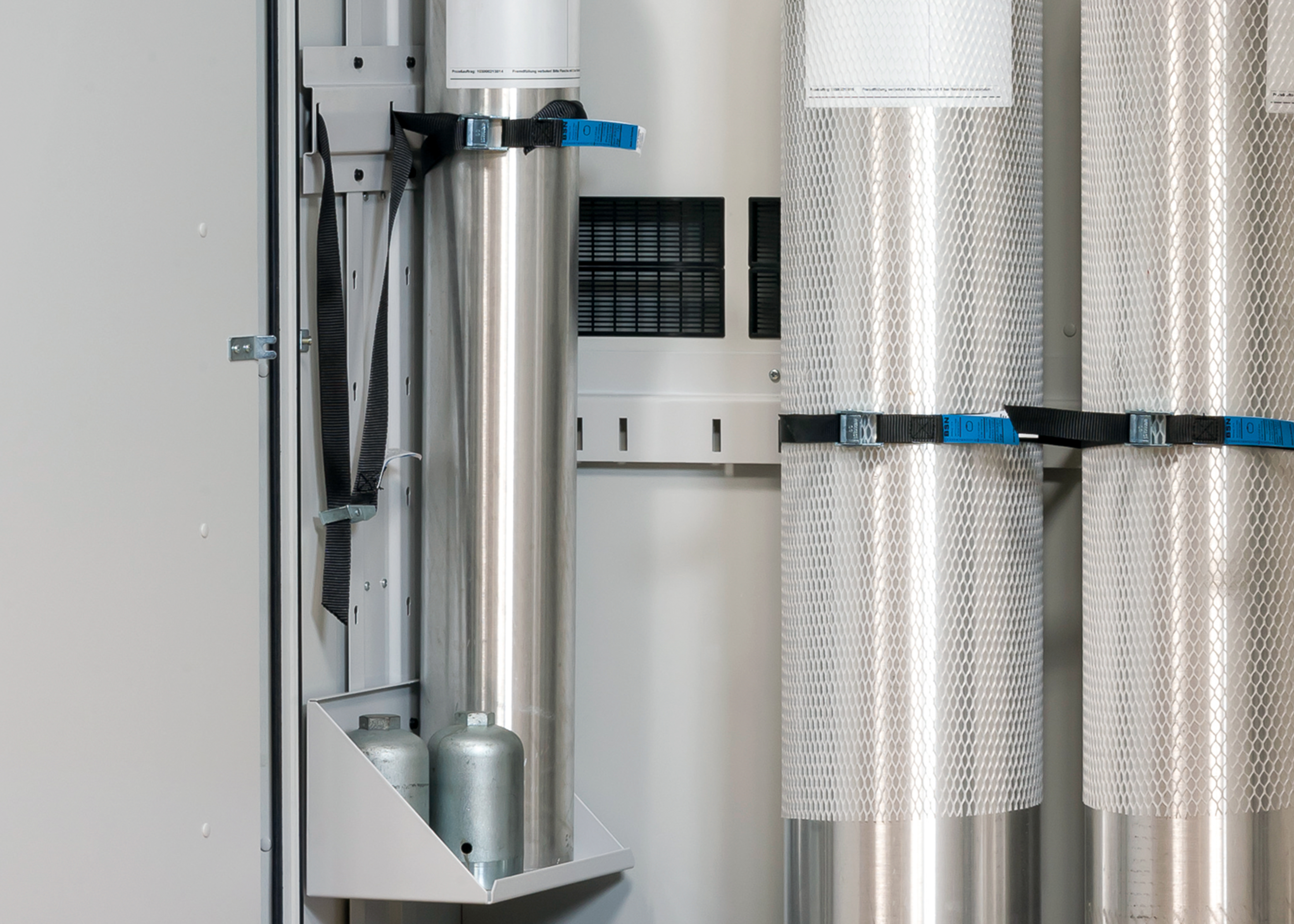

- 1 x comfort interior equipment gas cylinders, mounting rails, rolling ramp (L = 350 mm) with pneumatic damper, cylinder retainer and matching tension belts, sheet steel galvanised and powder coated
Technical Data
| External dimensions W x D x H | 1398 x 615 x 2050 mm |
| Internal dimensions W x D x H | 1245 x 400 x 1858 mm |
| Weight | 714,5 kg |
| Minimum exhaust air quantity 10 times | 9 m³/h |
| Differential pressure (10 times air change) | 5 Pa |
| Differential pressure (10 times air change EK5/AK4) | 5 Pa |
| Minimum exhaust air quantity 120 times | 111 m³/h |
| Differential pressure (120 times air change) | 54 Pa |
| Differential pressure (120 times air change EK5/AK4) | 143 Pa |
| Distributed load | 571 kg/m² |
| Maximum load | 600 kg |
| ecl@ss 5.1.4 | 21-10-04-06 |
| ecl@ss 9.1 | 40-06-30-05 |
| ecl@ss 10.0 | 40-06-01-11 |
| ecl@ss 11.0 | 40-06-01-11 |
| Maximum load (lb) | 1.322 lb |
| ecl@ss 8.1 | 40-06-30-05 |
