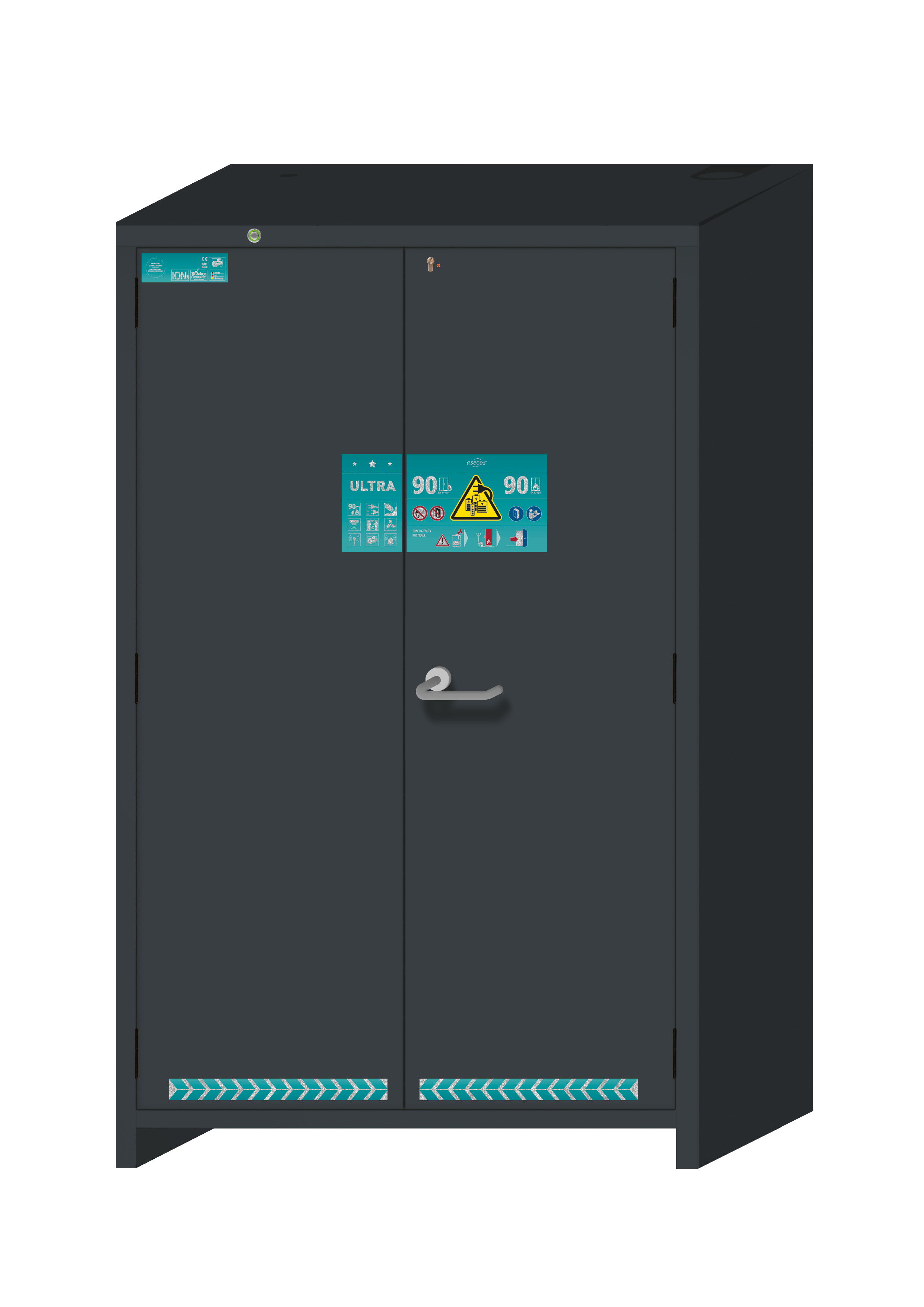

Safety storage cabinet for lithium-ion batteries ION-ULTRA-90 model IO90.195.120.065.WDAC

40559-053-40921

{{ $select.selected.preis | currency }} - {{ $select.selected.text }}

{{ preis.preis | currency }} - {{ preis.text }}

ION-ULTRA-90 Model IO90.195.120.065.WDEL

DIN EN 14470-1: Fire resistance of 90 minutes (type 90) from outside to inside
VDMA 24994: Fire resistance in the event of a thermal runaway by means of a real fire test
DIN EN 1363-1: Fire resistance of 90 minutes from inside to outside
CE compliant

Characteristics

The insulated shelf – Propagation tested for safety at every storage level. In the event of a battery fire, spread to other batteries is prevented.
With the LED display and visual/audible alarms, you can quickly recognise developing fires without having to open the cabinet doors.

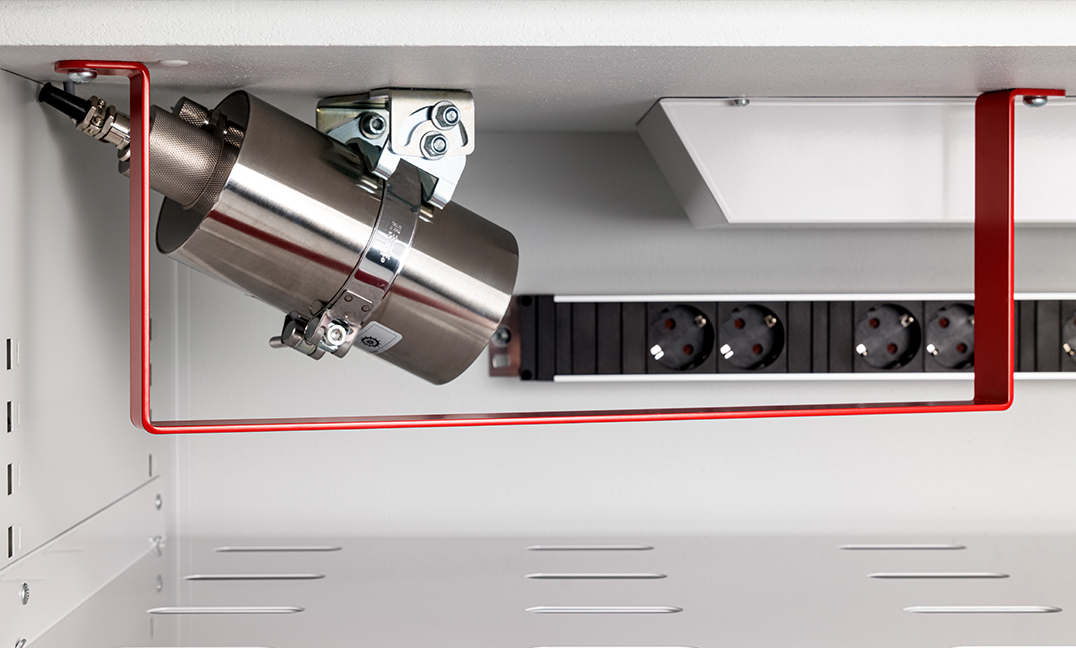

Smoke detectors and two temperature sensors detect even incipient fires and can transmit alarms to the building control system quickly.
The built-in, temperature-controlled ventilation system prevents heat build-up when charging the batteries.
If your work area is not staffed, the standard potential-free switching contacts forward differentiated alarms immediately to a connected control centre. Optional remote signalling module available.
The additional 3-point locking system combines convenient operation with successfully tested safety of closed doors in a real fire.

Cabinet locking

Convenient cabinet entry: open both doors at the same time with just one hand (AGT)
User-friendly and safe: : door open arrest system (standard) (TFA)
Always closed: serial automatic door closing (TSA) releases arrested door after approx. 60 seconds; acoustic and visual signal before closing

Colour

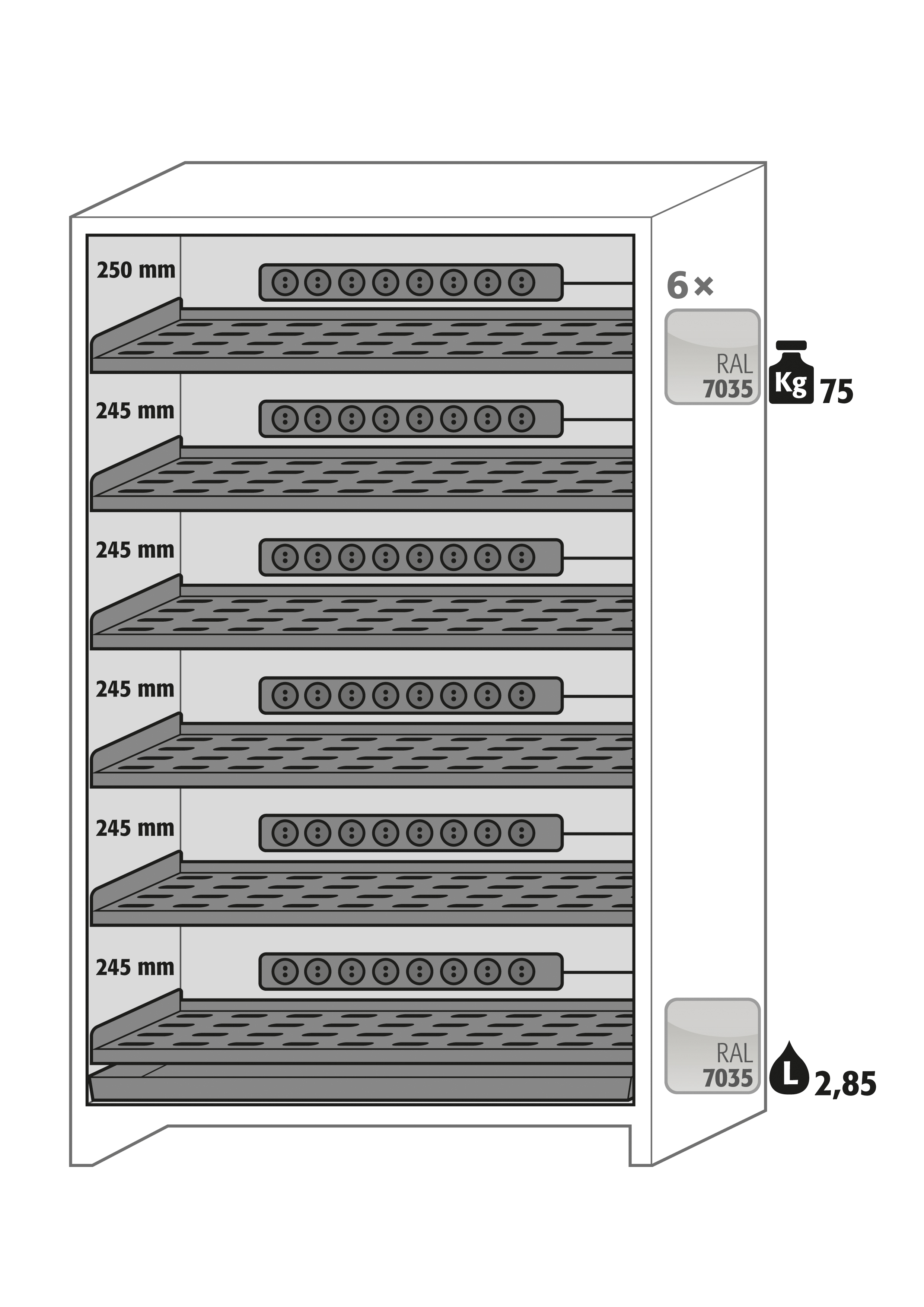

Interior equipment with

6 x socket strip, eU version
6 x , load capacity: 75. kg, powder-coated sheet steel, RAL 7035 light grey
1 x bottom collecting sump, capacity: 3. litres, powder-coated sheet steel, RAL 7035 light grey

External dimensions W x D x H	1193 x 650 x 1953 mm
Internal dimensions W x D x H	1050 x 565 x 1643 mm
Net weight configuration	603,50 kg
Distributed load	584,22 kg/m²
Maximum load	600 kg
Entry width transport base	1 120 mm
Entry height transport base	90 mm
Power consumption in operation	30 W
Nominal voltage	230 V
Fuse (1-phase)	16 A
Power max. (1-phase)	3,68 kW
Fuse (3-phase)	3 x 16 A
Power max. (3-phase)	11,04 kW
Capacity of bottom collecting sump	2.85 litres
ecl@ss 11.0	40-06-01-90
Number of socket strips	6 piece
Number of socket outlets per strip	8 piece
PIM_ECLASS_140	40-06-01-90
VDMA 24994 certified	Yes
