Safety storage cabinet for lithium-ion batteries ION-ULTRA-90 model IO90.195.120.065.WDAC

Order No.:

40559-053-40921

Recommended retail price:

{{ $select.selected.preis | currency }} - {{ $select.selected.text }}
{{ preis.preis | currency }} - {{ preis.text }}
New configuration
Print

Configuration

ION-ULTRA-90 Model IO90.195.120.065.WDEL
  • DIN EN 14470-1: Fire resistance of 90 minutes (type 90) from outside to inside
  • VDMA 24994: Fire resistance in the event of a thermal runaway by means of a real fire test
  • DIN EN 1363-1: Fire resistance of 90 minutes from inside to outside
  • CE compliant
Characteristics
  • The insulated shelf – Propagation tested for safety at every storage level. In the event of a battery fire, spread to other batteries is prevented.
  • With the LED display and visual/audible alarms, you can quickly recognise developing fires without having to open the cabinet doors.

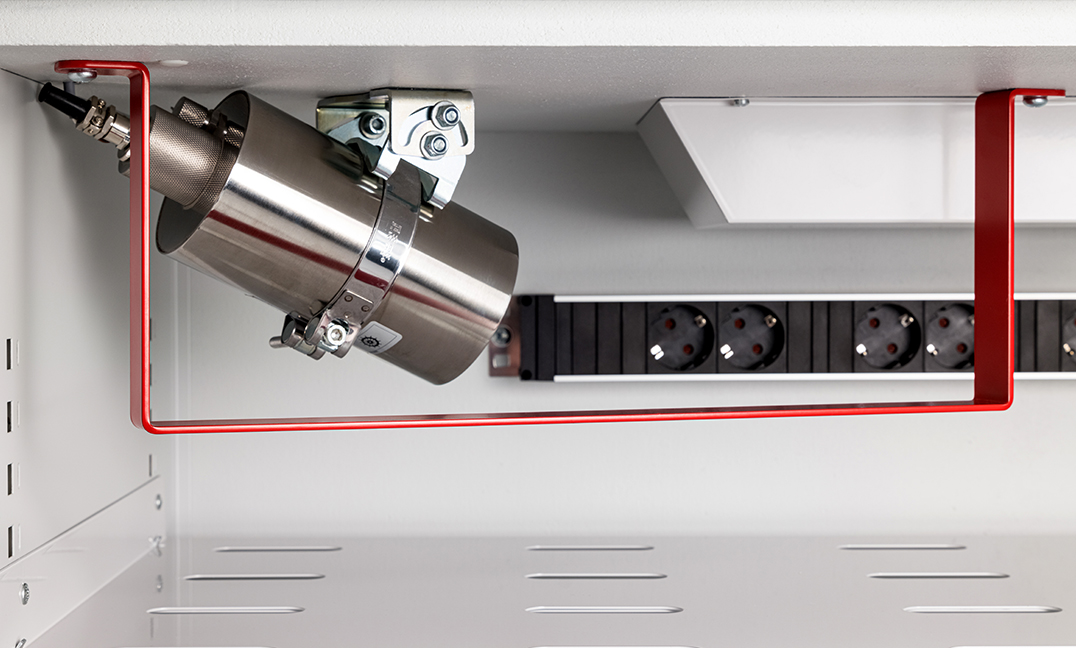

  • Smoke detectors and two temperature sensors detect even incipient fires and can transmit alarms to the building control system quickly.
  • The built-in, temperature-controlled ventilation system prevents heat build-up when charging the batteries.
  • If your work area is not staffed, the standard potential-free switching contacts forward differentiated alarms immediately to a connected control centre. Optional remote signalling module available.
  • The additional 3-point locking system combines convenient operation with successfully tested safety of closed doors in a real fire.
Cabinet locking
  • Convenient cabinet entry: open both doors at the same time with just one hand (AGT)
  • User-friendly and safe: : door open arrest system (standard) (TFA)
  • Always closed: serial automatic door closing (TSA) releases arrested door after approx. 60 seconds; acoustic and visual signal before closing
Colour
  • body colour anthracite grey (RAL 7016)
  • with wing doors in anthracite grey (RAL 7016)
Interior equipment with
  • 6 x socket strip, eU version
  • 6 x , load capacity: 75. kg, powder-coated sheet steel, RAL 7035 light grey
  • 1 x bottom collecting sump, capacity: 3. litres, powder-coated sheet steel, RAL 7035 light grey

Technical Data

External dimensions W x D x H 1193 x 650 x 1953 mm
Internal dimensions W x D x H 1050 x 545 x 1633 mm
Net weight configuration 603,50 kg
Distributed load 584,22 kg/m²
Maximum load 600 kg
Entry width transport base 1 120 mm
Entry height transport base 90 mm
Power consumption in operation 30 W
Nominal voltage 230 V
Fuse (1-phase) 16 A
Power max. (1-phase) 3,68 kW
Fuse (3-phase) 3 x 16 A
Power max. (3-phase) 11,04 kW
ecl@ss 11.0 40-06-01-90
Number of socket strips 6 piece
Number of socket outlets per strip 8 piece
ecl@ss 14.0 40-06-01-90
VDMA 24994 certified Yes
