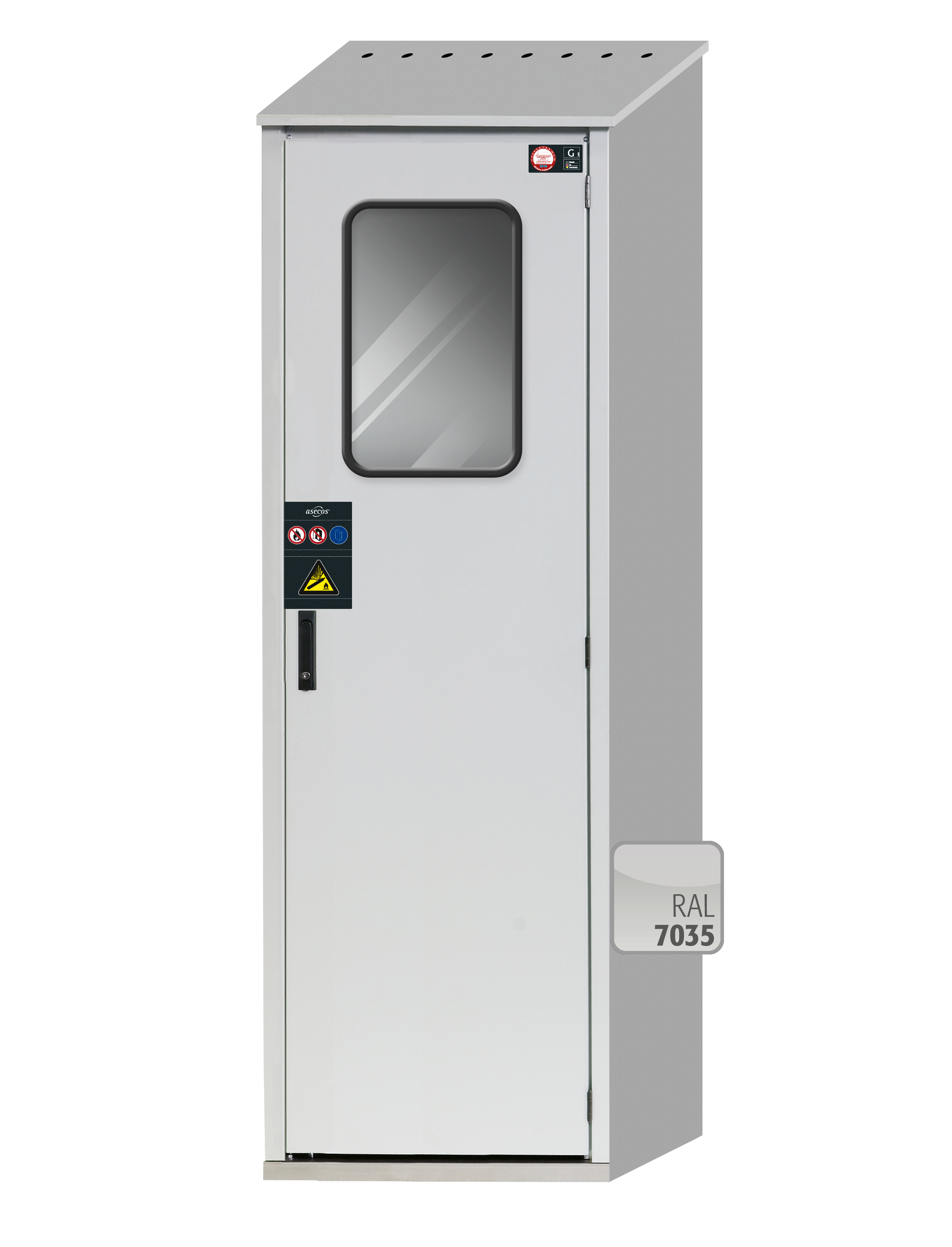

Gas cylinder cabinet G-OD model GOD.215.070.WDFWR
Order No.:
30752-015
Recommended retail price:
{{ preis.preis | currency }} - {{ preis.text }}
Configuration
Model
Colour
- Gas cylinder cabinet
- Free standing unit with wing doors and fixed window (right hinged)
- With cylinder locking (integrated in turning lever)
- Integrated adjusting aids to compensate uneven floor
- model line G-LINE
- model class G-OD
- Model GOD.215.070.WDFWR
- Dimensions exterior: W x D x H (mm) 706 x 400 x 2149
- Dimensions interior: W x D x H (mm) 695 x 370 x 2070
- with fixed window and standard interior equipment for 2 x 50 litre gas cylinders
- body colour light grey (RAL 7035)
- with glass-paneled wing door in light grey (RAL 7035)
Technical Data
| External dimensions W x D x H | 706 x 400 x 2149 mm |
| Internal dimensions W x D x H | 695 x 370 x 2070 mm |
| Weight | 101 kg |
| Minimum exhaust air quantity 10 times | 5 m³/h |
| Differential pressure (10 times air change) | 5 Pa |
| Distributed load | 699 kg/m² |
| Maximum load | 600 kg |
| ecl@ss 5.1.4 | 21-10-04-06 |
| ecl@ss 9.1 | 40-06-30-05 |
| ecl@ss 10.0 | 40-06-01-11 |
| ecl@ss 11.0 | 40-06-01-11 |
| ecl@ss 8.1 | 40-06-30-05 |
Downloads
Delivery
NOTE:
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.
