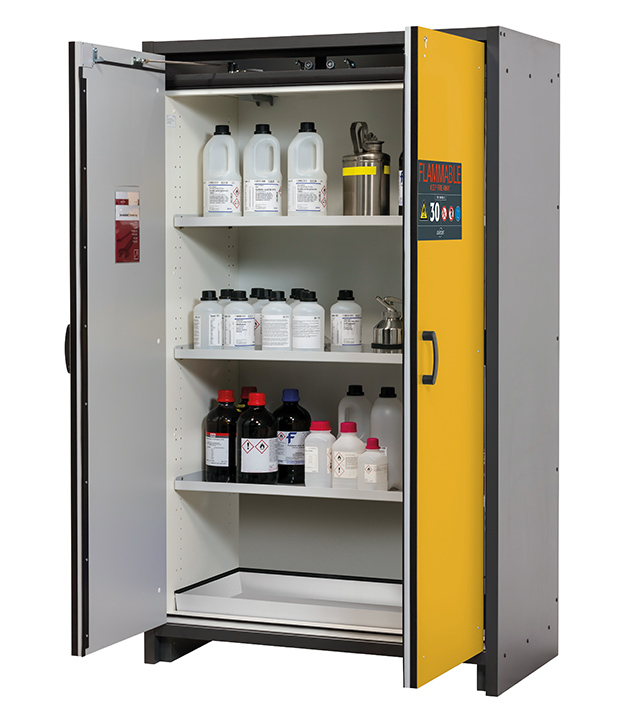

Safety storage cabinet type tested in accordance with EN 14470-1 model Q30.195.116.FU.WDAS
Body colour anthracite grey, with wing doors in warning yellow (RAL 1004), interior equipment with 3 x shelf, 1 x bottom collecting sump (sheet steel powder-coated)
Certification
- Fire resistance 30 minutes
- type tested in accordance with EN 14470-1
- DIN EN 16121/16122 conformity
- CE compliant
- FM 6050 approved
- UL/ULC 1275 listed
Function / construction
- Robust construction and longevity: triple hinged door, cabinet body made of melamine resin and flame retardant special plates, safety elements assembled outside the storage compartment for increased protection against corrosion, doors with metal front as well as scratch-and impact-resistant surface, easy to clean
- User-friendly and safe (model .WDAS): door open arrest system, convenient and safe removal or storage of containers
- No unauthorised use: doors lockable with profile cylinder (integration in an existing locking system possible)
- Easy transport: integrated transport base with removable, optional base cover or adjusting aids with base cover
- Ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system
- Double certified: cabinet tested in accordance with EN 14470-1 and FM Standard 6050
Order No.
37579-060-34639
Parcels or general cargo are usually delivered within one week of the delivery date. In the case of dispatch via a special forwarding agent (for safety storage cabinets and hazardous substance workstations), delivery is carried out regularly after all necessary delivery information (e.g. checklists) has been provided, on average within 10 working days after the provision date. The exact delivery period (provision time + delivery time) can be found in the detailed order confirmation or as a guide from your asecos contact person.
SCOPE OF SERVICES DELIVERY FREE DOMICILE (LFH):
- Delivery including packaging material to behind the first locked door at ground level
- on a one-way pallet (without overcoming steps, stairs, etc.)
SCOPE OF SERVICES DELIVERY FREE PLACE OF USE (LFV)
goes beyond this:
- - Delivery will be notified by asecos
- - highly recommended if you do not have your own trained staff available
The benefits for you:
- the installation at the desired location in the building (installation must be possible in advance
be clarified on the basis of a transport questionnaire to be completed by the customer) - the alignment of the cabinet
- taking away the packaging material
Not included are:
- - Use of crane or similar
- - A transfer time longer than 30 minutes
| External dimensions W x D x H (mm) | 45.83'' x 24.41'' x 76.65'' mm |
| Internal dimensions W x D x H (mm) | Fehlende Variable'' x Fehlende Variable'' x 64.02'' mm |
| Depth with open doors (mm) | 1,153.00 mm |
| Entry width transport base (mm) | 1,012 mm |
| Entry height transport base (mm) | 90 mm |
| Net weight configuration | 259.20 kg |
| Fire resistance level | 30 minutes |
| FM 6050 approved | Yes |
| CE compliant | yes (1) |
| GS certified | No (0) |
| Standard 1 | EN 14470-1 |
| Standard 2 | EN 16121/16122 |
| UL 1275 listed | yes |
| TSA | No (0) |
| Door open arrest system | yes (1) |
| Door opening angle | 90 ° |
| Extraction air (mm) | 75 DN |
| Differential pressure 10 times air change (EK5/AK4) (Pa) | 10 Pa |
| Minimum exhaust air quantity 10 times (m³/h) | 9 m³/h |
| Number of storage levels | 3 piece |
| Max. shelf load (evenly distributed | kg) | 75.00 kg |
| Capacity of bottom collecting sump (ltr.) | 33.00 litres |
| ecl@ss 14.0 | 40-06-01-09 |
| UNSPSC code | 24112402 |
| Customs tariff number | 94032080 |
| GTIN | 4054923226135 |
