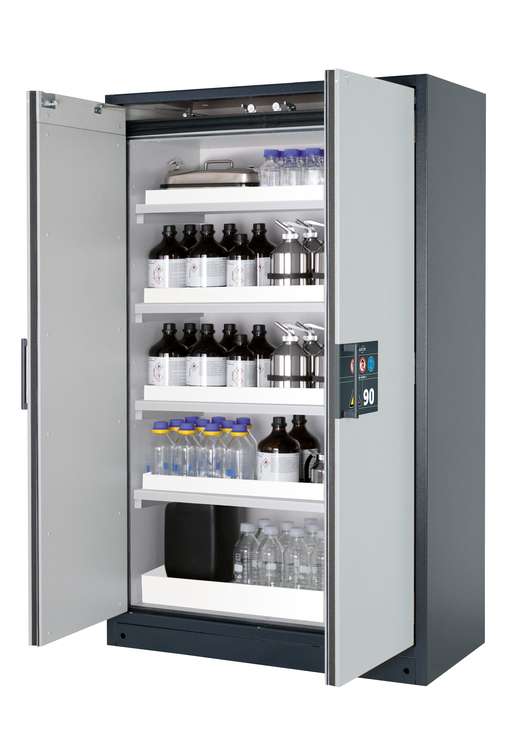

Safety storage cabinet Q-CLASSIC-90 model Q90.195.120

Order No.:

30001-041-30013

New configuration
Print

Configuration

Model
  • Type 90 Safety storage cabinet
  • Free standing unit with wing doors
  • With cylinder locking and locking state indicator
  • Integrated adjusting aids to compensate uneven floor
  • model line Q-LINE
  • model class Q-CLASSIC-90
  • Model Q90.195.120
  • Type tested in accordance with EN 14470-1
  • DIN EN 16121/16122
  • GS certified
  • CE compliant

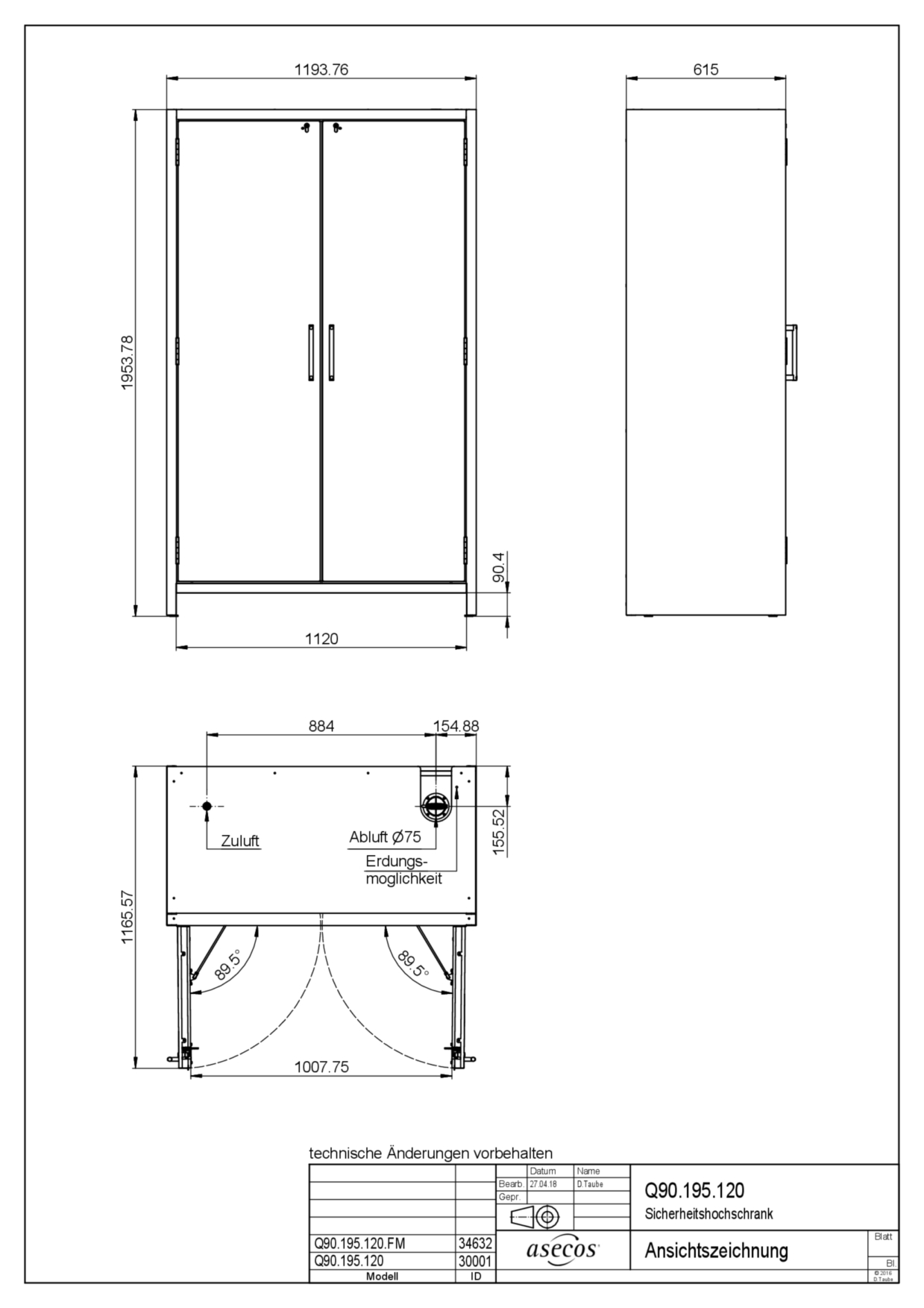

  • Dimensions exterior: W x D x H (mm) 1193 x 615 x 1953
  • Dimensions interior: W x D x H (mm) 1050 x 522 x 1647
Colour
  • body colour anthracite grey (RAL 7016)
  • with wing doors in light grey (RAL 7035)
Interior equipment with
  • 3 x tray shelf, metal free, load capacity: 50 kg, capacity: 33 litres, PP
  • 1 x bottom collecting sump metal free, capacity: 33 litres, PP

Technical Data

External dimensions W x D x H 1193 x 615 x 1953 mm
Internal dimensions W x D x H 1050 x 522 x 1647 mm
Weight 495 kg
Minimum exhaust air quantity 10 times 9 m³/h
Differential pressure (10 times air change) 5 Pa
Differential pressure (10 times air change EK5/AK4) 5 Pa
Distributed load 531 kg/m²
Maximum load 600 kg
Entry width transport base 1,120 mm
Entry height transport base 90 mm
Max. load of shelves 50.00 kg
Capacity of bottom collecting sump 33.00 litres
ecl@ss 5.1.4 21-10-04-07
ecl@ss 9.1 40-06-90-90
ecl@ss 10.0 40-06-90-90
ecl@ss 11.0 40-06-01-09
ecl@ss 8.1 40-06-01-02
ecl@ss 14.0 40-06-01-09

Downloads

Accessories

Document holder DIN A5

30793

Q-mover 2 pieces

30037

Base cover

30036

Extraction unit

14218

Alternative product
