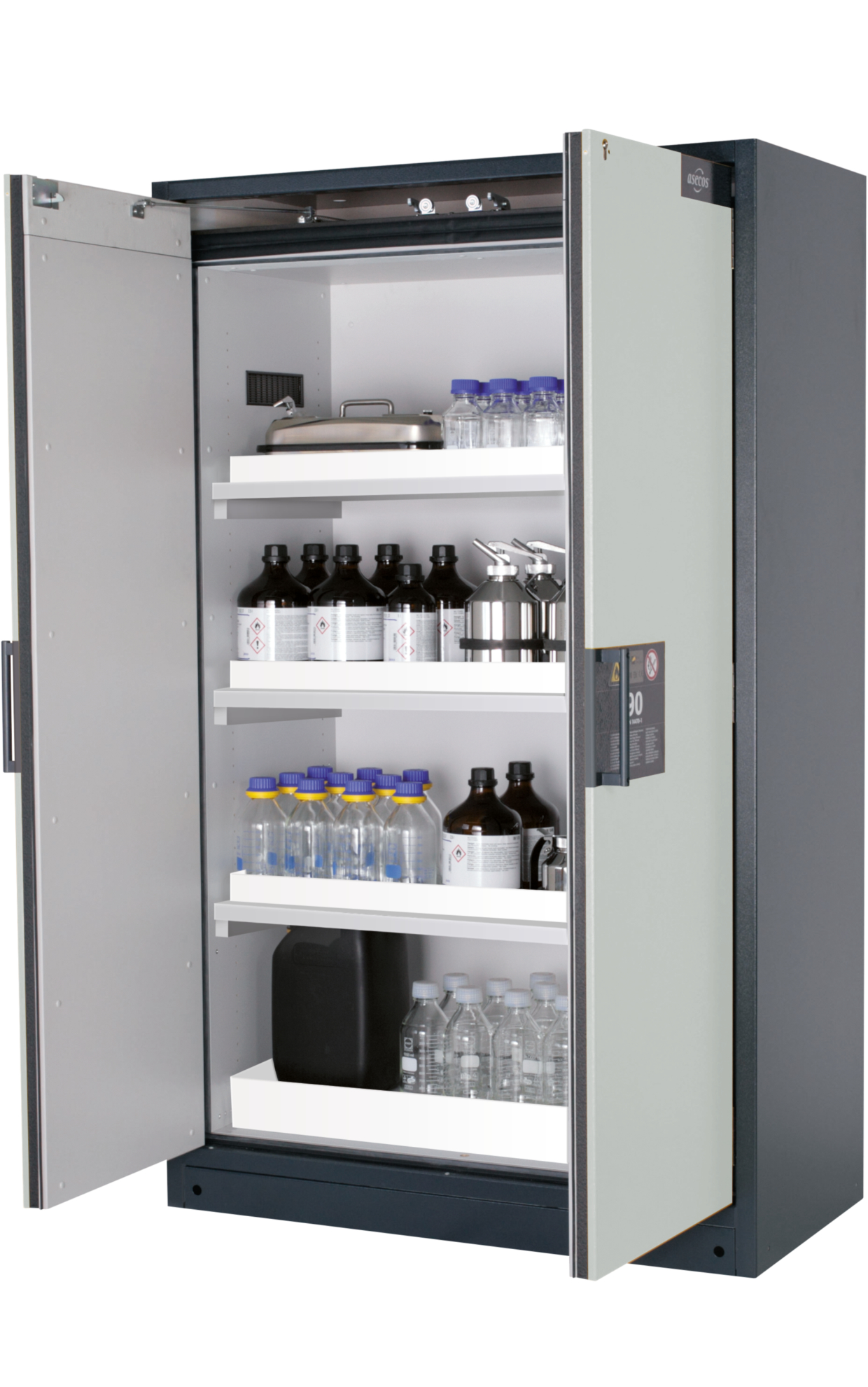

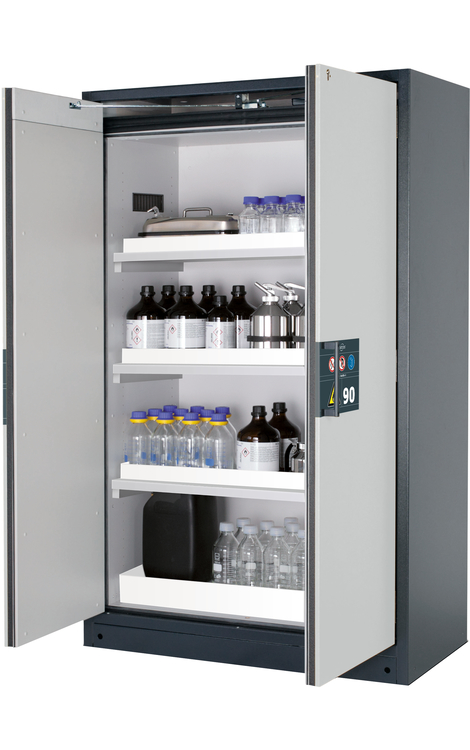

Safety storage cabinet Q-CLASSIC-30 model Q30.195.116

Order No.:

31003-060-30013

New configuration
Print

Configuration

Model
  • Type 30 Safety storage cabinet
  • Free standing unit with wing doors
  • With cylinder locking
  • Model line Q-LINE
  • Model class Q-CLASSIC-30
  • Model Q30.195.116
  • Type tested in accordance with EN 14470-1
  • DIN EN 16121/16122
  • CE compliant
  • Dimensions exterior: W x D x H (mm) 1164 x 620 x 1947
  • Dimensions interior: W x D x H (mm) 1050 x 519 x 1626
Colour
  • body colour anthracite grey
  • with wing doors in Warning yellow (RAL 1004)
Interior equipment with
  • 3 x tray shelf, metal free, load capacity: 50 kg, capacity: 33 litres, PP
  • 1 x bottom collecting sump metal free, capacity: 33 litres, PP

Technical Data

External dimensions W x D x H 1164 x 620 x 1947 mm
Internal dimensions W x D x H 1050 x 519 x 1626 mm
Weight 292 kg
Minimum exhaust air quantity 10 times 9 m³/h
Differential pressure (10 times air change) 10 Pa
Differential pressure (10 times air change EK5/AK4) 10 Pa
Distributed load 445 kg/m²
Maximum load 600 kg
Entry width transport base 1,012 mm
Entry height transport base 90 mm
Max. load of shelves 50.00 kg
Capacity of bottom collecting sump 33.00 litres
ecl@ss 5.1.4 21-10-04-07
ecl@ss 9.1 40-06-01-02
ecl@ss 10.0 40-06-01-09
ecl@ss 11.0 40-06-01-09
ecl@ss 8.1 40-06-01-02
ecl@ss 14.0 40-06-01-09

Downloads

Service

5service

Excellent products with special manufacturer warranty

Extended manufacturer warranty of up to 5 years in combination with an asecos service tariff

Accessories

Document holder DIN A5

30793

Q-mover 2 pieces

30037

Base cover

31925

Extraction unit

14218

Alternative product
