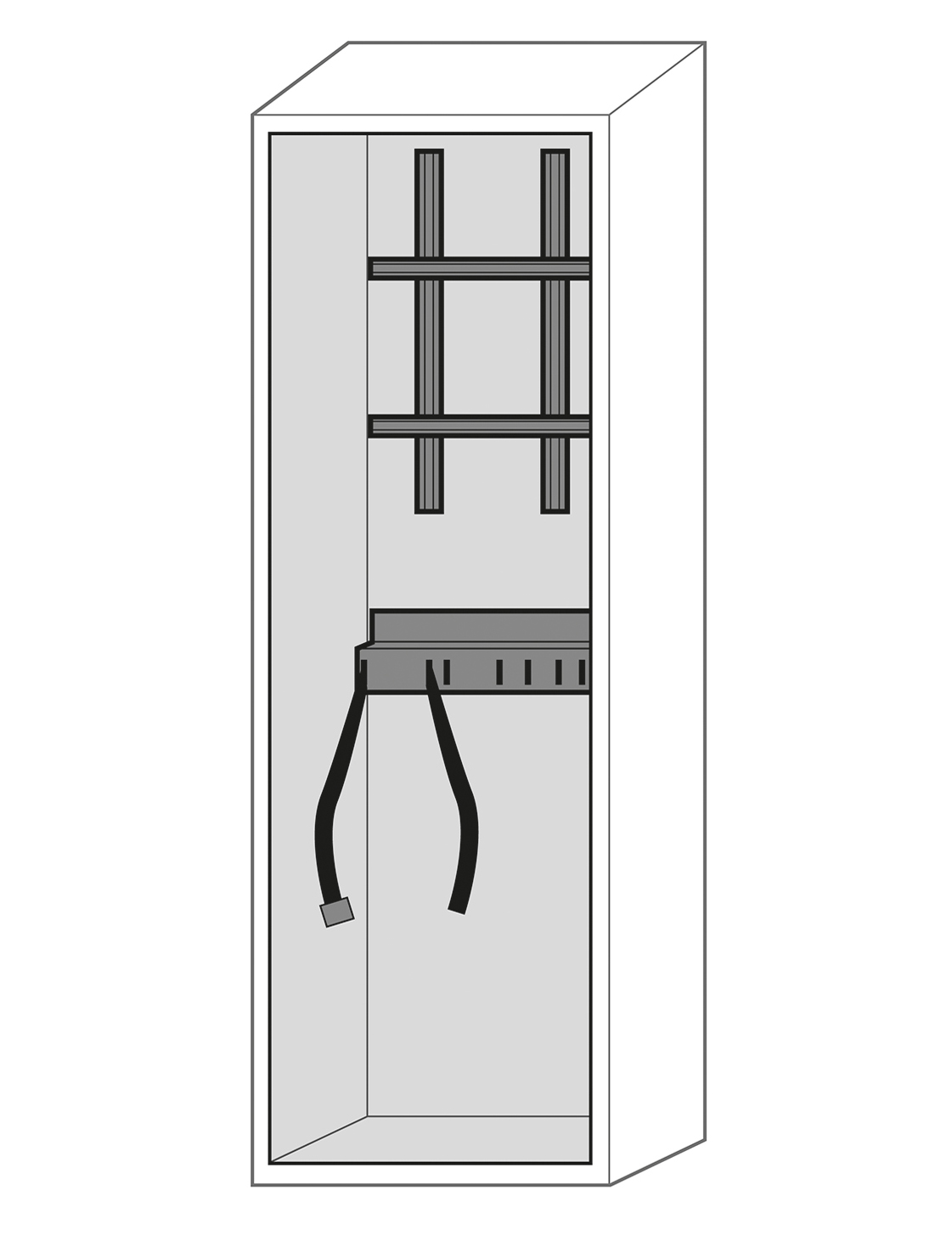

Model

• Gas cylinder cabinet
• Free standing unit with wing doors (right hinged)
• With cylinder locking (integrated in turning lever)
• Integrated adjusting aids to compensate uneven floor
• model line G-LINE
• model class G-OD
• Model GOD.215.070.R
• Dimensions exterior: W x D x H (mm) 706 x 400 x 2149
• Dimensions interior: W x D x H (mm) 695 x 370 x 2070
• with standard interior equipment for 2 x 50 litre gas cylinders

Colour

• body colour light grey (RAL 7035)
• with wing door in light grey (RAL 7035)

External dimensions W x D x H	706 x 400 x 2149 mm
Internal dimensions W x D x H	695 x 370 x 2070 mm
Weight	101 kg
Minimum exhaust air quantity 10 times	5 m³/h
Differential pressure (10 times air change)	5 Pa
Distributed load	699 kg/m²
Maximum load	600 kg
ecl@ss 5.1.4	21-10-04-06
ecl@ss 9.1	40-06-30-05
ecl@ss 10.0	40-06-01-11
ecl@ss 11.0	40-06-01-11
ecl@ss 8.1	40-06-30-05

• User manual for single-walled safety storage cabinets
• Product data sheet
• 2D-data (DWG)

NOTE:
When configuring a safety cabinet, please adhere to the applicable national rules and regulations for the storage of hazardous substances. If you are unsure, the asecos experts will be happy to help you further.

PRICE INFORMATION:
All prices are net prices and are subject to VAT.

¹ Ex works: The item price does not include delivery and delivery costs.

In the event that material and auxiliary materials, freight, toll, customs and energy costs, wages, etc. increase unforeseeably during the term of the contract, we reserve the right to increase or recalculate the price accordingly.
